AbuseMark 2k - config.txt 설정

http://abusemark.com/store/index.php?main_page=product_info&products_id=58

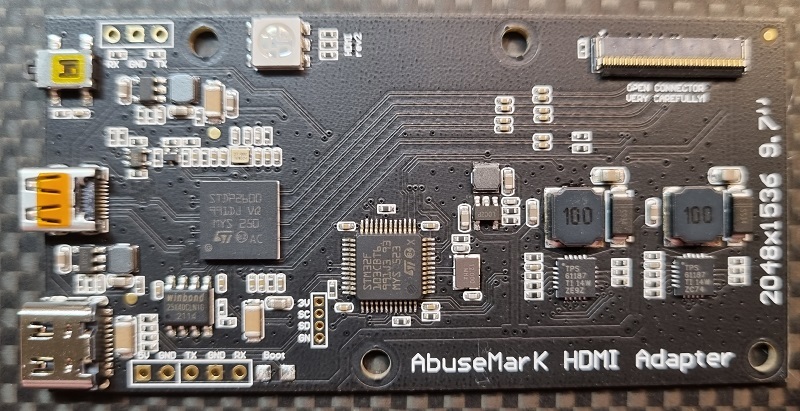

2048x1536 LCD to HDMI Adapter



*********************************************************************************
●AbuseMark 기판의 스위치 조작

→스위치 눌러 전원 온→파랑 LED 점등
→파란색 LED 점등에서 스위치 눌러 슬립 상태로 → 빨간색 LED 점등
→적색 LED 점등에서 스위치 눌러 복귀 →청색 LED 점등
→파란색 LED 점등에서 스위치 길게 눌러 LED가 청색→황색→보라색을 반복한다
→황색 LED 점등에서 스위치를 눌러 휘도를 낮춘다
→ 보라색 LED 점등에서 스위치를 눌러 휘도를 올린다
→파란색 LED 점등에서 스위치 길게 눌러서 청색→황색→보라색→청색과 일주시킨 후, 스위치 눌러 잠자기 상태가 되고 적색 LED 점등→다시 스위치 눌러 LED 소등으로 전원 OFF

*********************************************************************************





config.txt 설정 내용



overscan_scale=1
max_framebuffer_width=2048
max_framebuffer_height=1536
hdmi_cvt=2048 1536 30 1 0 0 1
hdmi_ignore_edid=0xa5000080
hdmi_group=2
hdmi_mode=87
hdmi_drive=2



















• USB Serial driver for Windows x86/x64

hikari_vcom.zip

0.01MB
